Butt Weld Fittings

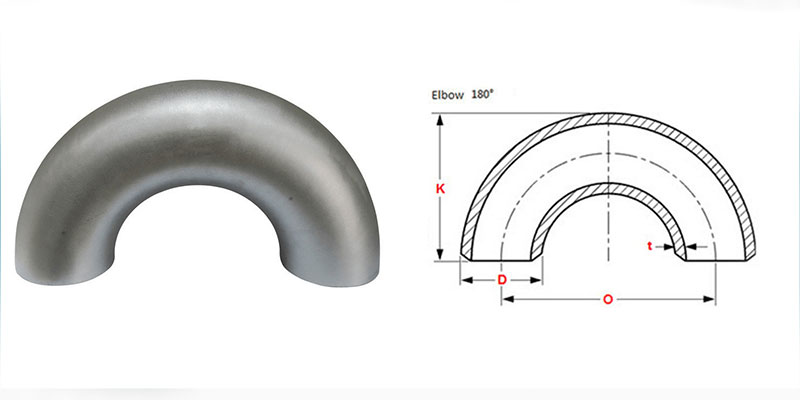

180 Degree Elbow

A 180-degree elbow, also known as a "Buttweld 180° Elbow" (BW) or "180° Bend," is a pipe fitting that changes the direction of a piping system by 180 degrees. This means the pipe effectively reverses direction at the elbow, creating a straight run of pipe but with a change in orientation.
Key Features:

Function: Used to reverse the direction of fluid flow in a piping system.
Material: Typically made of steel (carbon, stainless, or alloy), and can be seamless or welded.
Types: Exists in both Long Radius (LR) and Short Radius (SR) versions, with LR elbows generally offering smoother flow and less friction.
Applications: Used in various industries like wastewater treatment, chemical plants, and power generation, where reversing the direction of a pipe run is necessary.
Standards: Commonly manufactured to standards like ASME B16.9.

Types of Butt Weld Fittings Types
Type	Elbow Fittings	Long, Short Radius, 3D
		45 Degrees, 90 Degrees & 180 Degrees
	Reducer Fittings	Concentric & Eccentric
	Tee Fittings	Equal & Reducing
	End Cap Fittings	-
Size Range	1/2'' (15mm), 3/4'' (20mm), 1''(25mm), 1-1/4'' (32mm), 1-1/2'' (40mm), 2'' (50mm), 2-1/2'' (65mm), 3'' (80mm), 3-1/2'' (90mm), 4'' (100mm), 5''(125mm), 6'' (150mm), 8'' (200mm), 10'' (250mm), 12'' (300mm), 14'' (350mm), 16'' (400mm), 18'' (450mm), 20'' (500mm), 22'' (550mm), 24'' (600mm), 26'' (650mm), 28'' (700mm), 30'' (750mm), 32'' (800mm), 34'' (850mm), 36'' (900mm), 48'' (1200mm)
Wall Thickness	SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160 SCH STD, SCH XS, SCH XXS SCH 10s, SCH 40s, SCH 80s
Standard	ASME B16.9, ASME B16.28, MSS SP-75

Specification
Carbon Steel	ASME/ASTM SA/A234-WPB, WPC
High-Yield Carbon Steel	ASTM A860 WPHY 42/ 46/ 52/ 60/ 65/ 70
Low Temp Carbon Steel	ASME/ASTM SA/A420 WPL6
Chrome Moly	ASME/ASTM SA/A234-WP5, WP9, WP11, WP12, WP22, WP91
Stainless Steel	ASME/ASTM SA/A403WP 304/304L, 316/316L, 309, 304H, 310S, 317, 321, 321H, 347, 347H, 904L
Duplex/ Super Duplex	ASME/ASTM SA/A815 UNS S31803 / S32205 / S32750 / S32760
Nickel Alloy	ASME/ASTM SB366, UNS N02200 (Nickel 200), UNS N02201 (Nickle 201) UNS N04400 (Monel 400),), UNS N06600 (Inconel 600) UNS N06601 (Inconel 601), UNS N06625 (Inconel 625) UNS N08810 (Incoloy 800H), UNS N08811 (Incoloy 800HT) UNS N08825 (Inconel 825), UNS N010276 (Hastelloy C276)
